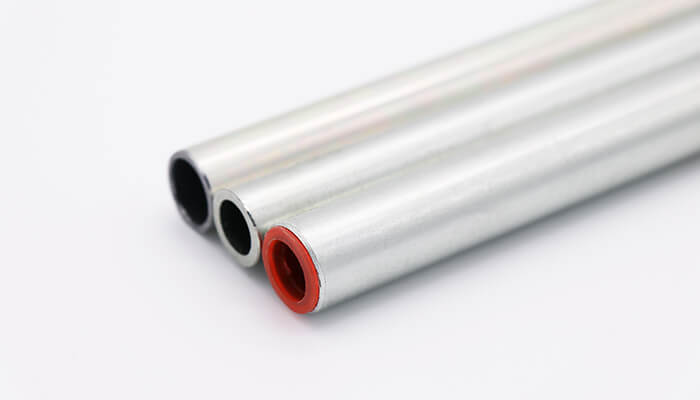

EN 10305 Galvanized Hydraulic Seamless Steel Tube
Product Name: EN 10305 Galvanized Hydraulic Seamless Steel Tube
Standard: EN10305-4 (DIN2445/2), EN10305-1 (DIN2391), ASTM A179
Steel grade: E235 (ST35 ST37.4), E355 (ST52 ST52.4)
Size: OD: 4-120mm
WT: 0.5-10mm
Length: fixed 6m or as your request
Finish: Galvanized — This tube has a zinc coating of 8 to 12μm
Delivery condition: +N (NBK) normalized under a controlled atmosphere
Delivery time: 15-45 days, according to the quantity you need and the item in stock
Shape: round
Process: perforation/pickling/phosphating/cold drawn/cold rolling/annealing/anaerobic annealing
Protection: Anti-rust oil on the inner and outer surfaces, plastic covers at both ends.
If you have any questions about product quality, usage, etc., please contact us: global steeltube
Product Advantages
-
Anti-rust
No any corrosion after 120 hours' salt spray test
-
Galvanized
Cold galvanized(electrogalvanizing) in bright pipe
-
Color
White, yellow and colorful
-
Bending
No zinc coating drops when bending
-
Pressure sheet
Professional high pressure hydraulic tubing
Cold drawn / cold rolled: High dimensional accuracy, excellent internal and external wall finish
Eddy current testing: Each steel pipe is tested by eddy current flaw detection to ensure product quality
Anaerobic bright heat treatment (NBK): When the seamless steel pipe is annealed, vacuum is applied and ammonia-decomposed nitrogen and hydrogen are injected for protection heating, heat preservation and cooling. It maintains the original rolling accuracy and smoothness of the steel pipe, and has excellent mechanical properties and metallographic structure.
Surface treatment (galvanized): We use environmentally-friendly electro-galvanized technology to form a uniform, dense, and well-combined galvanized layer (over 12μm) on the surface of seamless steel pipes, making it extremely resistant to corrosion and rust.
| OD | Thickness（m m） | ||||||||||
| mm | |||||||||||
| 6 | 6*1 | 6*1.5 | 6*2 | ||||||||
| 8 | 8*1 | 8*1.5 | 8*2 | ||||||||
| 10 | 10*1 | 10*1.5 | 10*2 | ||||||||
| 12 | 12*1 | 12*1.5 | 12*2 | 12*2.5 | |||||||
| 14 | 14*1 | 14*1.5 | 14*2 | 14*2.5 | 14*3 | ||||||
| 15 | 15*1 | 15*1.5 | 15*2 | 15*2.5 | 15*3 | ||||||
| 10*1 | 16*1 | 16*1.5 | 16*2 | 16*2.5 | 16*3 | ||||||
| 18 | 18*1.5 | 18*2 | 18*2.5 | 18*3 | 18*3.5 | 18*4 | |||||
| 20 | 20*1.5 | 20*2 | 20*2.5 | 20*3 | 20*3.5 | 20*4 | |||||
| 22 | 22*1.5 | 22*2 | 22*2.5 | 22*3 | 22*3.5 | 22*4 | |||||
| 25 | 25*2 | 25*2.5 | 25*3 | 25*3.5 | 25*4 | ||||||
| 28 | 28*2 | 28*2.5 | 28*3 | 28*3.5 | 28*4 | ||||||
| 30 | 30*2 | 30*2.5 | 30*3 | 30*3.5 | 30*4 | 30*4.5 | 30*5 | ||||
| 32 | 32*2 | 32*2.5 | 32*3 | 32*3.5 | 32*4 | 32*4.5 | 32*5 | ||||
| 34 | 34*2 | 34*2.5 | 34*3 | 34*3.5 | 34*4 | 34*4.5 | 34*5 | 34*6 | |||
| 35 | 35*2 | 35*2.5 | 35*3 | 35*3.5 | 35*4 | 35*4.5 | 35*5 | 35*6 | |||
| 38 | 38*2 | 38*2.5 | 38*3 | 38*3.5 | 38*4 | 38*4.5 | 38*5 | 38*6 | |||
| 40 | 40*2.5 | 40*3 | 40*3.5 | 40*4 | 40*4.5 | 40*5 | 40*6 | ||||
| 42 | 42*2.5 | 42*3 | 42*3.5 | 42*4 | 42*4.5 | 42*5 | 42*6 | ||||
| 45 | 45*2.5 | 45*3 | 45*3.5 | 45*4 | 45*4.5 | 45*5 | 45*6 | ||||
| 46 | 46*2.5 | 46*3 | 46*3.5 | 46*4 | 46*4.5 | 46*5 | 46*6 | ||||
| 48 | 48*2.5 | 48*3 | 48*3.5 | 48*4 | 48*4.5 | 48*5 | 48*6 | ||||
| 50 | 50*2.5 | 50*3 | 50*3.5 | 50*4 | 50*4.5 | 50*5 | 50*6 | ||||
| 54 | 54*3 | 54*3.5 | 54*4 | 54*4.5 | 54*5 | 54*6 | |||||
| 60 | 60*3 | 60*3.5 | 60*4 | 60*4.5 | 60*5 | 60*6 | 60*8 | ||||
| Steel grade | C
max. |
Si
max. |
Mn
max. |
P
max. |
S
max. |
Total
min. |
|
| Name | Number | ||||||
| E215 | 1.0212 | 0.10 | 0.05 | 0.7 | 0.025 | 0.015 | 0.025 |
| E235 | 1.0308 | 0.17 | 0.35 | 1.2 | 0.025 | 0.015 | — |
| E355 | 1.0580 | 0.22 | 0.55 | 1.6 | 0.025 | 0.015 | — |
| Outer Diameter | Allowable tolerance | Special tolerance | |||||
| GB/T3639 | DIN2391 | OD | WT | ||||
| 4mm-20mm | ±0.10mm | ±0.08mm | ±0.05mm | ±0.05mm | |||
| 20mm-30mm | ±0.10mm | ±0.08mm | ±0.08mm | ±0.08mm | |||
| 31mm-40mm | ±0.15mm | ±0.15mm | ±0.10mm | ±0.08mm | |||
| 41mm-60mm | ±0.20mm | ±0.20mm | ±0.15mm | ±0.15mm | |||
| 61mm-80mm | ±0.30mm | ±0.30mm | ±0.20mm | ±0.20mm | |||
| 81mm-120mm | ±0.45mm | ±0.45mm | ±0.30mm | ±0.30mm | |||
| Steel grade | Yield strength | Tensile strength | Elongation | ||||
| Name | Number | RH | Rm | A | |||
| min. | min. | min. | |||||
| MPa | MPa | % | |||||
| E215 | 1.0212 | 215 | 290 to 430 | 30 | |||
| E235 | 1.0308 | 235 | 340 to 480 | 25 | |||
| E355 | 1.0580 | 355 | 490 to 630 | 22 | |||
Product Description
Standard: EN10305-4(DIN2445/2), EN10305-1(DIN2391), ASTM A179
Steel Grade: E235 (ST35 ST37.4 ), E355 (ST52 ST52.4)
Size: OD: 4-120mm, WT: 0.5-10mm, Length:Fixed 6m or as your requirement
Surface treatment: galvanized–these tubes wit
FAQ：
1. Can I get some samples?
Yes. We can provide samples, you need to pay the sample fee and shipping cost in advance.
After you place the order, we will refund the sample fee. Please let us know your courier account or send us your fee and we will arrange to send you samples.
2. Can you produce according to the samples?
Yes, we can make samples or technical drawings for you.
3. What are your payment terms?
Payments <= $1000, 100% prepayment. Payment >=1000 USD, 30% T/T in advance, balance before shipment.
If you have other questions, please feel free to contact us.
4. What are your delivery terms?
EXW, FOB, CFR, CIF, DDU.
5. Can we visit your factory?
Warm welcome. Once we have your schedule, we will arrange for a professional sales team to follow up on your case.
6. If you have other questions, please contact us： global steeltube
